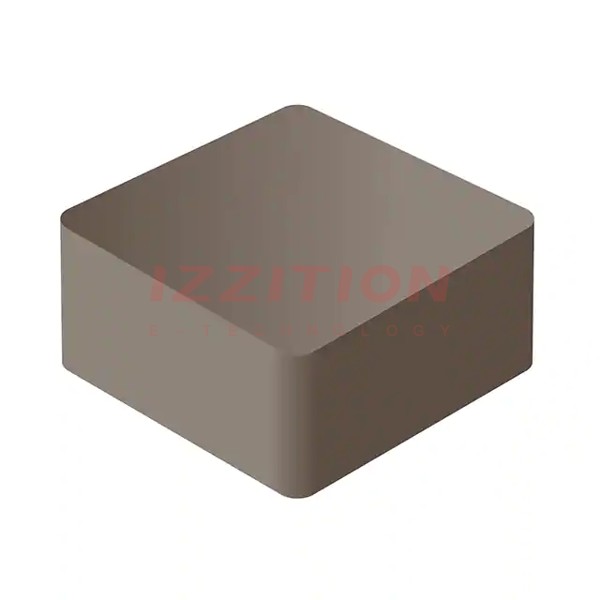

| Part Number | SRP6030CA-2R2M | SRP6050CA-2R2M | SRP6030VA-2R2M | SRP5030CA-2R2M | SRP6030CA-1R2M |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder | Metal | Iron Powder | Iron Powder |
| Inductance | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH | 1.2 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 10 A | 13 A | 11 A | 9.7 A | 16 A |
| Current - Saturation (Isat) | 15.9A | 16A | 13A | 10A | 22A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 12.2mOhm Max | 8.5mOhm Max | 25.8mOhm Max | 14.5mOhm Max | 7.4mOhm Max |
| Q @ Freq | - | - | 10 @ 100kHz | - | - |
| Frequency - Self Resonant | 29MHz | 30MHz | 29MHz | 33MHz | 47MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 180°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.260" L x 0.252" W (6.60mm x 6.40mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.197" (5.00mm) | 0.118" (3.00mm) | 0.122" (3.10mm) | 0.118" (3.00mm) |
