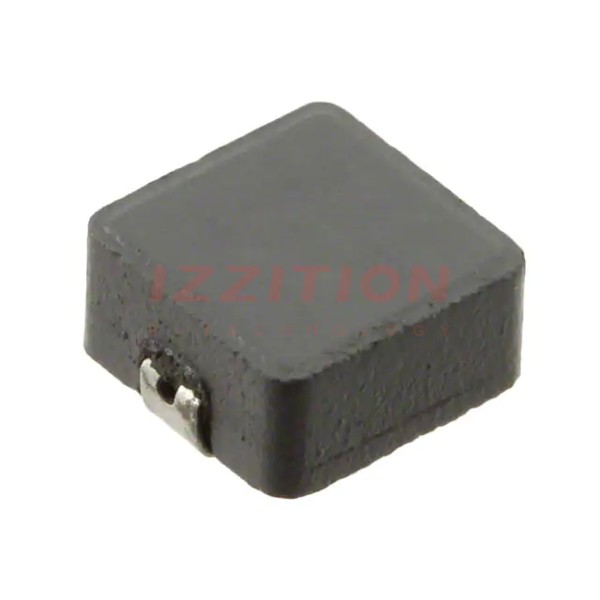

| Part Number | SRP5030T-3R3M | SRP5030TA-3R3M | SRP5030C-3R3M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | - |
| Material - Core | Iron Powder | Carbonyl Powder | Metal |
| Inductance | 3.3 µH | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 5 A | 5 A | 5 A |
| Current - Saturation (Isat) | 8A | 8A | 7A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 38mOhm Max | 38mOhm Max | 38mOhm Max |
| Q @ Freq | - | 15 @ 100kHz | 20 @ 100kHz |
| Frequency - Self Resonant | - | 30MHz | 25MHz |
| Ratings | - | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 150°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
