Please send RFQ , we will respond immediately.

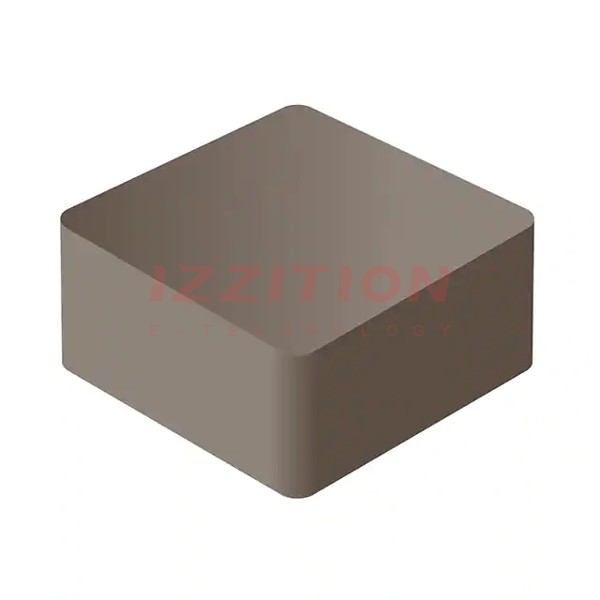

| Part Number | SRP5030CA-R82M | SRP5030CA-R80M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 820 nH | 800 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 12.9 A | 13.1 A |
| Current - Saturation (Isat) | 19.7A | 20A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 5.78mOhm Max | 5.65mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 54MHz | 57MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.217" L x 0.209" W (5.50mm x 5.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.122" (3.10mm) |
