Please send RFQ , we will respond immediately.

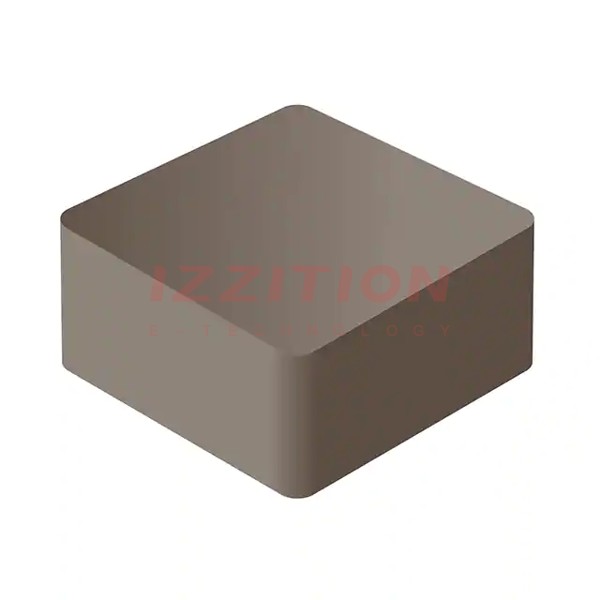

| Part Number | SRP5030CA-2R2M | SRP6030CA-2R2M | SRP5030TA-2R2M | SRP5030C-2R2M | SRP5030CA-1R2M |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | - | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder | Carbonyl Powder | Metal | Iron Powder |
| Inductance | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH | 1.2 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 9.7 A | 10 A | 5.5 A | 7 A | 11 A |
| Current - Saturation (Isat) | 10A | 15.9A | 9A | 8A | 15A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 14.5mOhm Max | 12.2mOhm Max | 35mOhm Max | 32mOhm Max | 9.7mOhm Max |
| Q @ Freq | - | - | 15 @ 100kHz | 20 @ 100kHz | - |
| Frequency - Self Resonant | 33MHz | 29MHz | 36MHz | 30MHz | 43MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -40°C ~ 150°C | -40°C ~ 125°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.217" L x 0.209" W (5.50mm x 5.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.122" (3.10mm) |
