Please send RFQ , we will respond immediately.

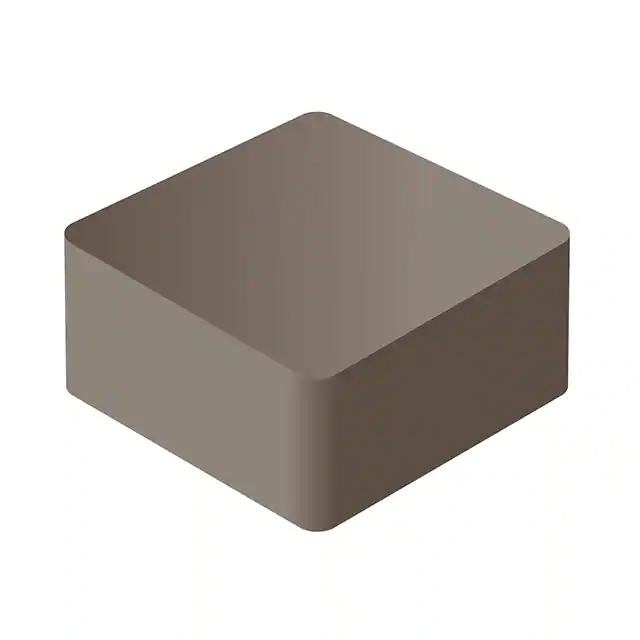

| Part Number | SRP5030CA-1R0M | SRP5030CA-1R8M | SRP5030CA-1R5M | SRP5030TA-1R0M | SRP5030CA-1R2M | SRP6030CA-1R0M | SRP5030C-1R0M |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | - |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Carbonyl Powder | Iron Powder | Iron Powder | Metal |
| Inductance | 1 µH | 1.8 µH | 1.5 µH | 1 µH | 1.2 µH | 1 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 12.2 A | 10.1 A | 10.5 A | 7 A | 11 A | 18 A | 10 A |
| Current - Saturation (Isat) | 16.5A | 12.3A | 14A | 11A | 15A | 23A | 12A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 7.6mOhm Max | 12.7mOhm Max | 11.2mOhm Max | 14mOhm Max | 9.7mOhm Max | 6.05mOhm Max | 14mOhm Max |
| Q @ Freq | - | - | - | 10 @ 100kHz | - | - | 20 @ 100kHz |
| Frequency - Self Resonant | 50MHz | 36MHz | 38MHz | 62MHz | 43MHz | 52MHz | 43MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -40°C ~ 150°C | -55°C ~ 155°C | -55°C ~ 155°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.118" (3.00mm) | 0.122" (3.10mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
