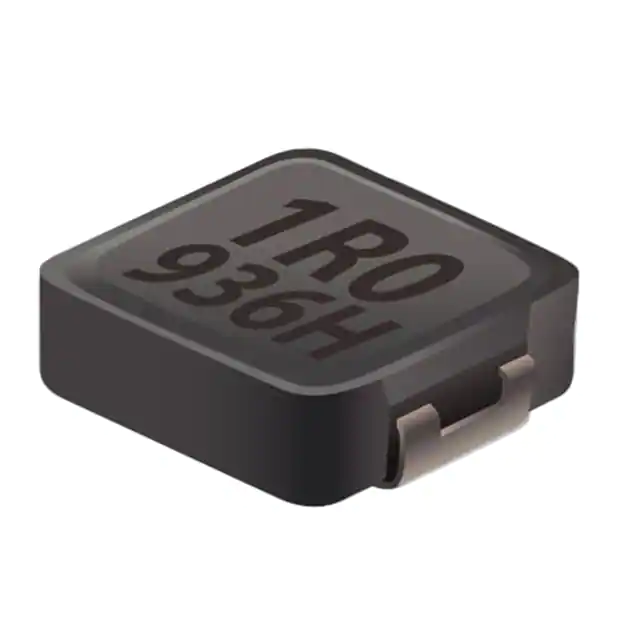

| Part Number | SRP5030C-R15Y | SRP5020C-R15Y | SRP5030C-R10Y | SRP5030C-R12Y |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal |
| Inductance | 150 nH | 150 nH | 100 nH | 120 nH |
| Tolerance | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 22 A | 18 A | 25 A | 23 A |
| Current - Saturation (Isat) | 30A | 34A | 33A | 31A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 3.2mOhm Max | 4mOhm Max | 3mOhm Max | 3mOhm Max |
| Q @ Freq | 12 @ 100kHz | 5 @ 100kHz | 10 @ 100kHz | 10 @ 100kHz |
| Frequency - Self Resonant | 130MHz | 180MHz | 177MHz | 177MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
