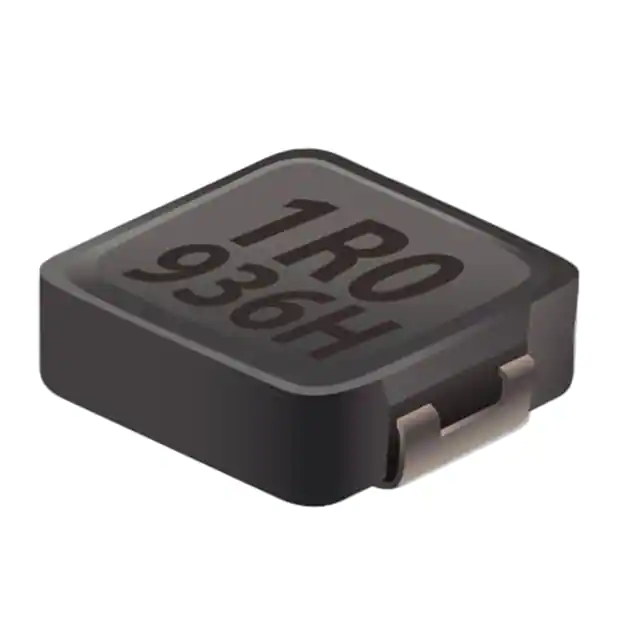

| Part Number | SRP5030C-100M | SRP5030T-100M | SRP5030C-1R0M | SRP5020C-100M |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | - | Drum Core, Wirewound | - | - |
| Material - Core | Metal | Iron Powder | Metal | Metal |
| Inductance | 10 µH | 10 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.8 A | 2.75 A | 10 A | 2.5 A |
| Current - Saturation (Isat) | 2.8A | 3.5A | 12A | 3.6A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 122mOhm Max | 128mOhm Max | 14mOhm Max | 190mOhm Max |
| Q @ Freq | 20 @ 100kHz | - | 20 @ 100kHz | 20 @ 100kHz |
| Frequency - Self Resonant | 15MHz | - | 43MHz | 10MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) |
