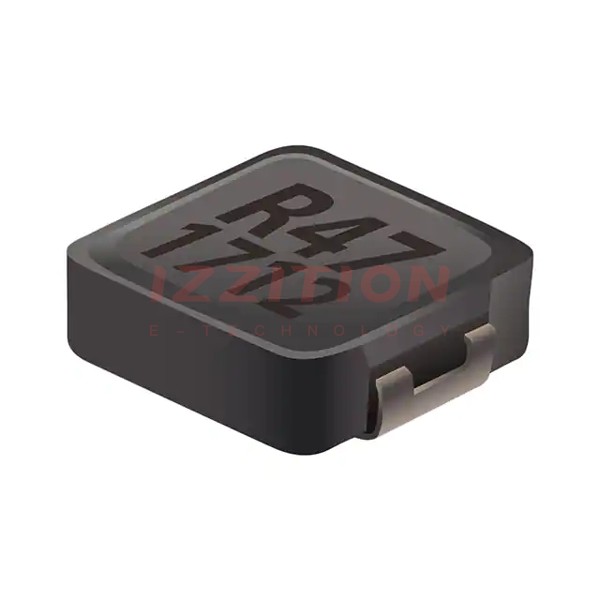

| Part Number | SRP5020TA-1R0M | SRP5030TA-1R0M | SRP5020TA-1R5M | SRP5020TA-1R2M | SRP4020TA-1R0M | SRP5020TA-100M |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal | Carbonyl Powder | Metal | Metal | Carbonyl Powder | Metal |
| Inductance | 1 µH | 1 µH | 1.5 µH | 1.2 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 7 A | 7 A | 5.5 A | 6.2 A | 5 A | 2.3 A |
| Current - Saturation (Isat) | 13.7A | 11A | 9.8A | 11A | 8.5A | 3.4A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 20mOhm Max | 14mOhm Max | 30.5mOhm Max | 28mOhm Max | 27mOhm Max | 199mOhm Max |
| Q @ Freq | 13 @ 100kHz | 10 @ 100kHz | 15 @ 100kHz | 14 @ 100kHz | 10 @ 100kHz | 22 @ 100kHz |
| Frequency - Self Resonant | 64MHz | 62MHz | 52MHz | 58MHz | 65MHz | 18MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 150°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 150°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | 2-SMD | Nonstandard |
| Supplier Device Package | - | - | - | - | 2-SMD | - |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
