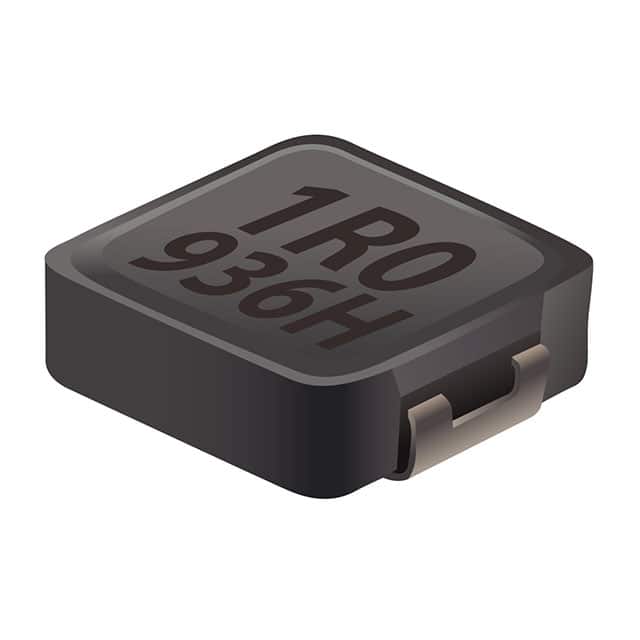

| Part Number | SRP5020C-R33M | SRP5030C-R33M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal | Metal |
| Inductance | 330 nH | 330 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 14 A | 17 A |
| Current - Saturation (Isat) | 17A | 20A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 6.1mOhm Max | 5mOhm Max |
| Q @ Freq | 5 @ 100kHz | 12 @ 100kHz |
| Frequency - Self Resonant | 86MHz | 85MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.118" (3.00mm) |
