Please send RFQ , we will respond immediately.

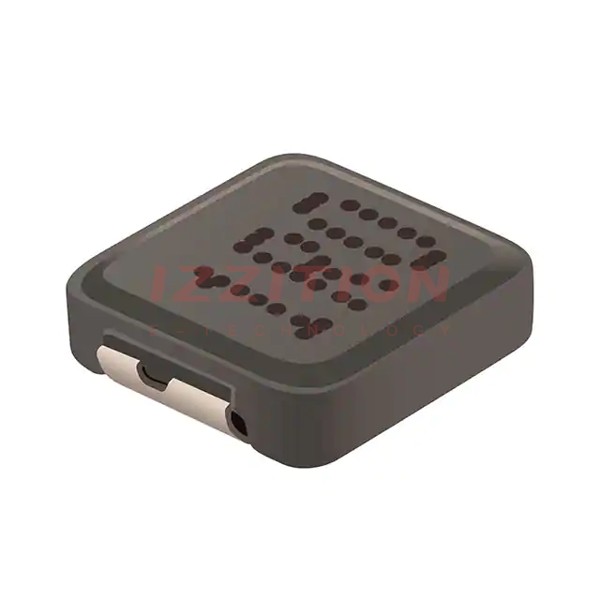

| Part Number | SRP5015TA-R22Y | SRP5015TA-R20Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Carbonyl Powder |
| Inductance | 220 nH | 200 nH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 12 A | 15 A |
| Current - Saturation (Isat) | 20A | 22.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 6.5mOhm Max | 4.2mOhm Max |
| Q @ Freq | 5 @ 100kHz | 5 @ 100kHz |
| Frequency - Self Resonant | 165MHz | 180MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) |
