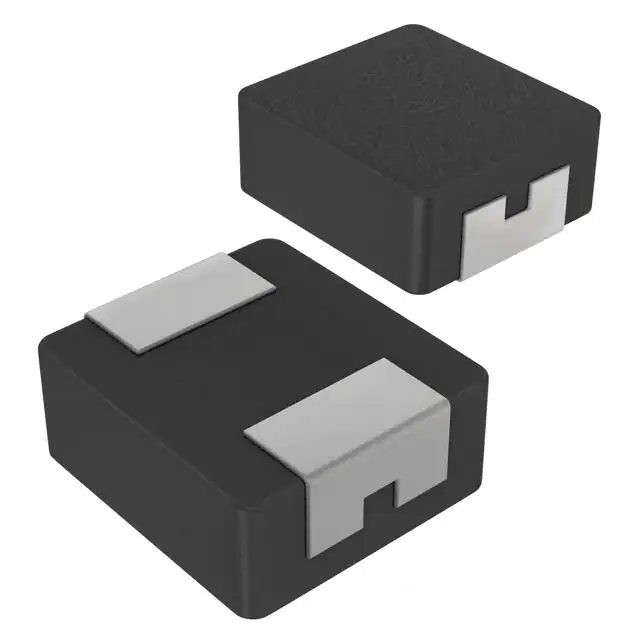

| Part Number | SRP4020TA-R68M | SRP5020TA-R68M | SRP3020TA-R68M | SRP4020FA-R68M |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Metal | Carbonyl Powder | Iron Powder |
| Inductance | 680 nH | 680 nH | 680 nH | 680 nH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 7 A | 10 A | 5.5 A | 12 A |
| Current - Saturation (Isat) | 10A | 12.8A | 7A | 8A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 19mOhm Max | 12.4mOhm Max | 29mOhm Max | 8.2mOhm Max |
| Q @ Freq | 10 @ 100kHz | 12 @ 100kHz | 5 @ 100kHz | 20 @ 100kHz |
| Frequency - Self Resonant | 100MHz | 90MHz | 94MHz | 73MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 105°C | -40°C ~ 150°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | Nonstandard | 2-SMD | Nonstandard |
| Supplier Device Package | 2-SMD | - | 2-SMD | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.083" (2.10mm) |
