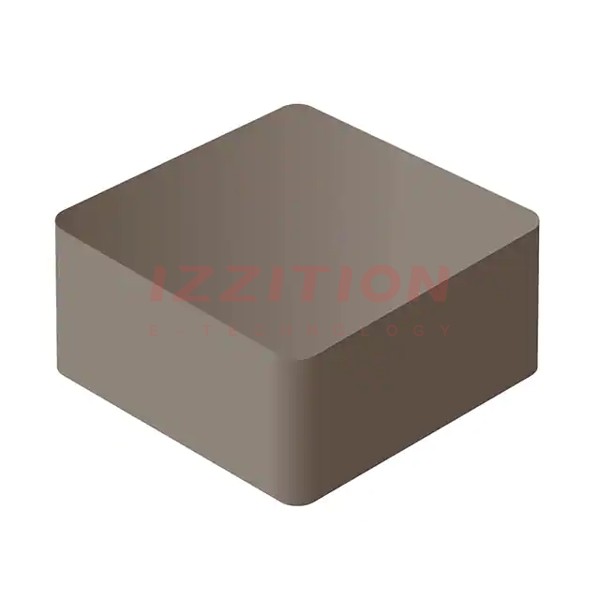

| Part Number | SRP4020FA-R68M | SRP4020TA-R68M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Carbonyl Powder |
| Inductance | 680 nH | 680 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 12 A | 7 A |
| Current - Saturation (Isat) | 8A | 10A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 8.2mOhm Max | 19mOhm Max |
| Q @ Freq | 20 @ 100kHz | 10 @ 100kHz |
| Frequency - Self Resonant | 73MHz | 100MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | 2-SMD |
| Supplier Device Package | - | 2-SMD |
| Size / Dimension | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.083" (2.10mm) | 0.079" (2.00mm) |
