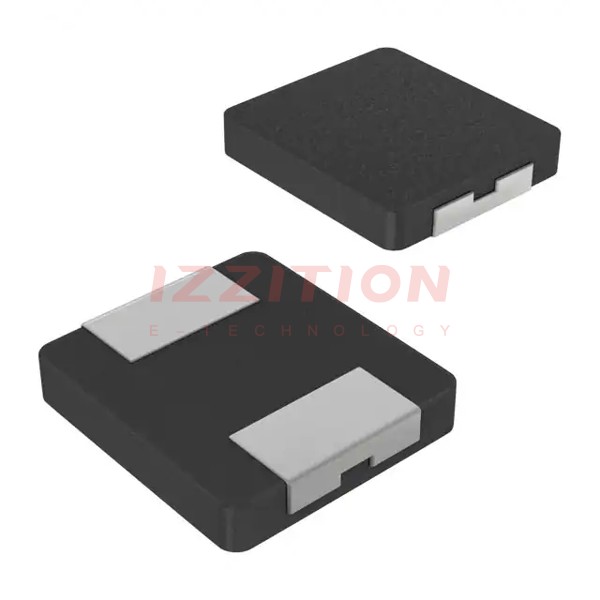

| Part Number | SRP4012TA-5R6M | SRP3012TA-5R6M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Carbonyl Powder |
| Inductance | 5.6 µH | 5.6 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.7 A | 1.5 A |
| Current - Saturation (Isat) | 2.3A | 2.2A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 208mOhm Max | 360mOhm Max |
| Q @ Freq | 10 @ 100kHz | - |
| Frequency - Self Resonant | 30MHz | 32MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | 2-SMD |
| Supplier Device Package | 2-SMD | 2-SMD |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.138" L x 0.126" W (3.50mm x 3.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) |
