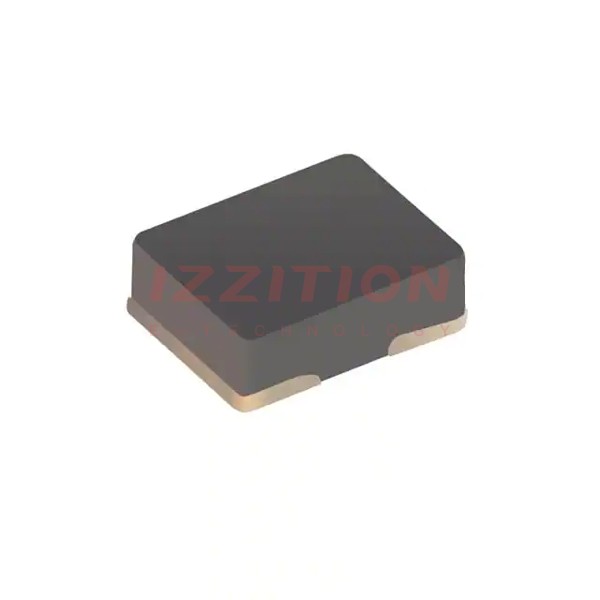

| Part Number | SRP3212A-3R3M | SRP3212-3R3M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | Drum Core, Wirewound |
| Material - Core | - | Alloy Powder |
| Inductance | - | 3.3 µH |
| Tolerance | - | ±20% |
| Current Rating (Amps) | - | 3.1 A |
| Current - Saturation (Isat) | - | 3.4A |
| Shielding | - | Shielded |
| DC Resistance (DCR) | - | 101mOhm Max |
| Q @ Freq | - | 5 @ 100kHz |
| Frequency - Self Resonant | - | 28MHz |
| Ratings | - | - |
| Operating Temperature | - | -40°C ~ 125°C |
| Inductance Frequency - Test | - | 100 kHz |
| Features | - | - |
| Mounting Type | - | Surface Mount |
| Package / Case | - | 1210 (3225 Metric) |
| Supplier Device Package | - | 1210 |
| Size / Dimension | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | - | 0.047" (1.20mm) |
