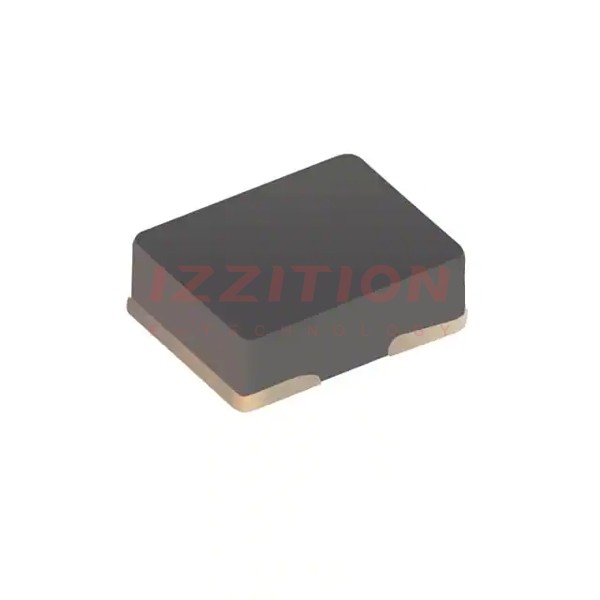

| Part Number | SRP3212A-1R5M | SRP3212-1R5M | SRP3212A-1R0M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | - | Drum Core, Wirewound | - |
| Material - Core | - | Alloy Powder | - |
| Inductance | - | 1.5 µH | - |
| Tolerance | - | ±20% | - |
| Current Rating (Amps) | - | 4.4 A | - |
| Current - Saturation (Isat) | - | 5A | - |
| Shielding | - | Shielded | - |
| DC Resistance (DCR) | - | 53mOhm Max | - |
| Q @ Freq | - | 5 @ 100kHz | - |
| Frequency - Self Resonant | - | 43MHz | - |
| Ratings | - | - | - |
| Operating Temperature | - | -40°C ~ 125°C | - |
| Inductance Frequency - Test | - | 100 kHz | - |
| Features | - | - | - |
| Mounting Type | - | Surface Mount | - |
| Package / Case | - | 1210 (3225 Metric) | - |
| Supplier Device Package | - | 1210 | - |
| Size / Dimension | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
| Height - Seated (Max) | - | 0.047" (1.20mm) | - |
