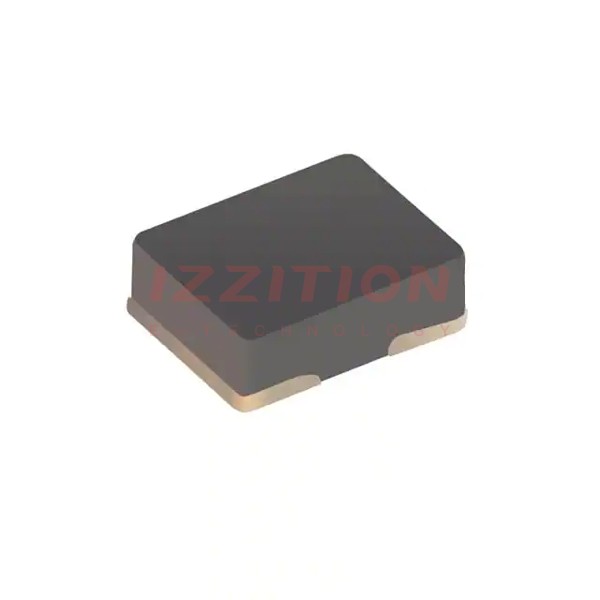

| Part Number | SRP3212A-1R0M | SRP3212A-1R5M | SRP3212-1R0M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | - | - | Drum Core, Wirewound |
| Material - Core | - | - | Alloy Powder |
| Inductance | - | - | 1 µH |
| Tolerance | - | - | ±20% |
| Current Rating (Amps) | - | - | 5.5 A |
| Current - Saturation (Isat) | - | - | 6.5A |
| Shielding | - | - | Shielded |
| DC Resistance (DCR) | - | - | 32mOhm Max |
| Q @ Freq | - | - | 5 @ 100kHz |
| Frequency - Self Resonant | - | - | 63MHz |
| Ratings | - | - | - |
| Operating Temperature | - | - | -40°C ~ 125°C |
| Inductance Frequency - Test | - | - | 100 kHz |
| Features | - | - | - |
| Mounting Type | - | - | Surface Mount |
| Package / Case | - | - | 1210 (3225 Metric) |
| Supplier Device Package | - | - | 1210 |
| Size / Dimension | - | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | - | - | 0.047" (1.20mm) |
