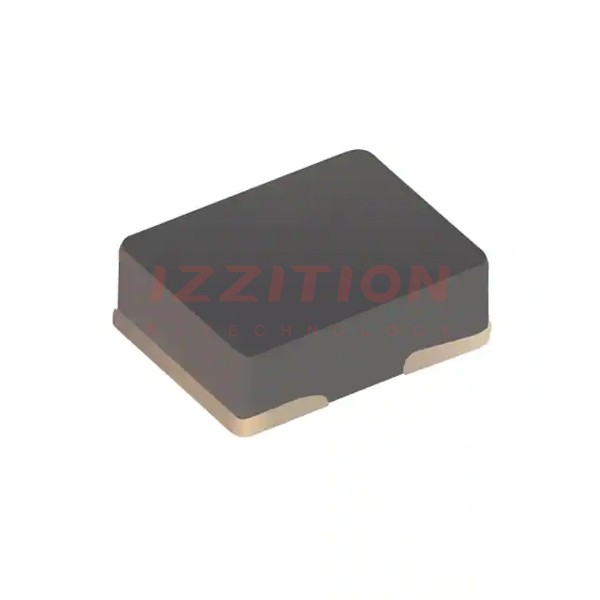

| Part Number | SRP3212-4R7M | SRP3212A-4R7M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | - |
| Material - Core | Alloy Powder | - |
| Inductance | 4.7 µH | - |
| Tolerance | ±20% | - |
| Current Rating (Amps) | 2.2 A | - |
| Current - Saturation (Isat) | 2.8A | - |
| Shielding | Shielded | - |
| DC Resistance (DCR) | 146mOhm Max | - |
| Q @ Freq | 5 @ 100kHz | - |
| Frequency - Self Resonant | 25MHz | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | - |
| Inductance Frequency - Test | 100 kHz | - |
| Features | - | - |
| Mounting Type | Surface Mount | - |
| Package / Case | 1210 (3225 Metric) | - |
| Supplier Device Package | 1210 | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
| Height - Seated (Max) | 0.047" (1.20mm) | - |
