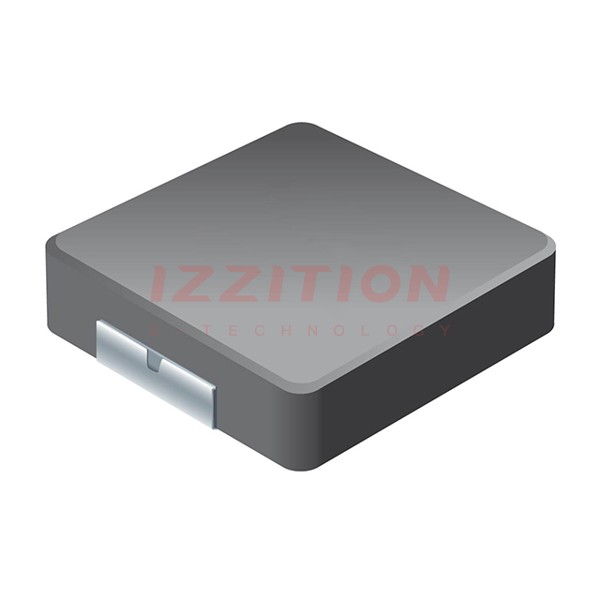

| Part Number | SRP3020TA-R22Y | SRP4020TA-R22Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Carbonyl Powder |
| Inductance | 220 nH | 220 nH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 9 A | 11 A |
| Current - Saturation (Isat) | 11.2A | 24A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 14mOhm Max | 7.3mOhm Max |
| Q @ Freq | 5 @ 100kHz | 10 @ 100kHz |
| Frequency - Self Resonant | 185MHz | 270MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | 2-SMD |
| Supplier Device Package | 2-SMD | 2-SMD |
| Size / Dimension | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
