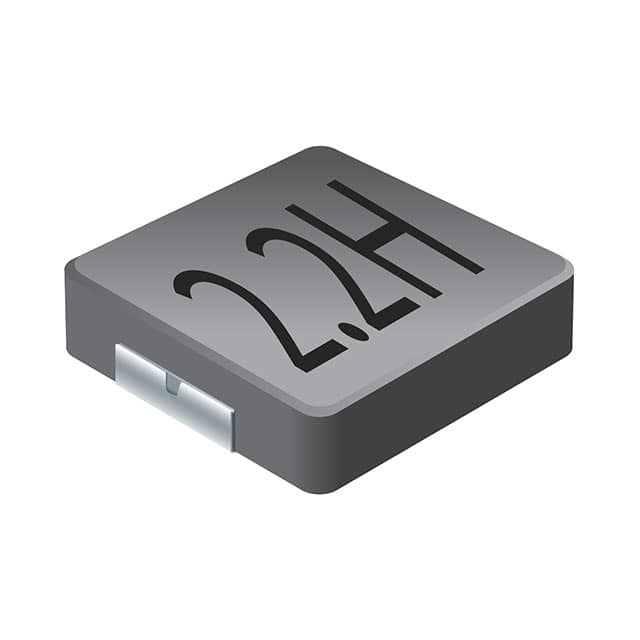

| Part Number | SRP3020C-8R2M | SRP3020C-2R2M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal | Metal |
| Inductance | 8.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.4 A | 3.5 A |
| Current - Saturation (Isat) | 1.4A | 3.7A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 390mOhm Max | 75mOhm Max |
| Q @ Freq | 10 @ 100kHz | 10 @ 100kHz |
| Frequency - Self Resonant | 27MHz | 75MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.138" L x 0.126" W (3.50mm x 3.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
