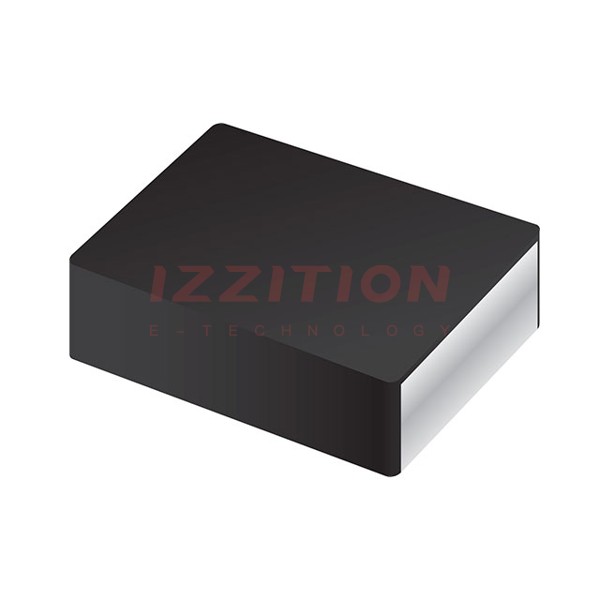

| Part Number | SRP2510A-4R7M | SRP2512A-4R7M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.36 A | 1.55 A |
| Current - Saturation (Isat) | 1.8A | 1.9A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 262mOhm Max | 235mOhm Max |
| Q @ Freq | 35 @ 1MHz | 39 @ 1MHz |
| Frequency - Self Resonant | 40MHz | 37MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.047" (1.20mm) |
