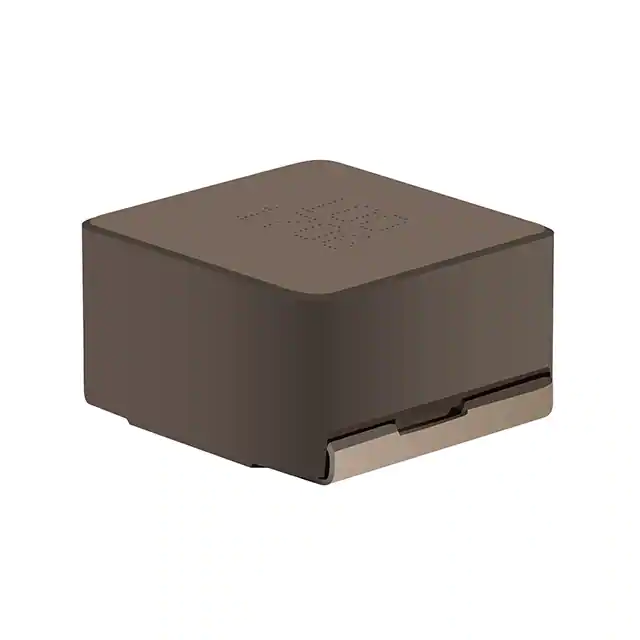

| Part Number | SRP2313AA-330M | SRP2313AA-230M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Alloy Powder | Alloy Powder |
| Inductance | 33 µH | 23 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 16 A | 18 A |
| Current - Saturation (Isat) | 10.5A | 14A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 15.4mOhm Max | 11mOhm Max |
| Q @ Freq | 30 @ 100kHz | 30 @ 100kHz |
| Frequency - Self Resonant | 4MHz | 5MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.925" L x 0.866" W (23.50mm x 22.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) |
