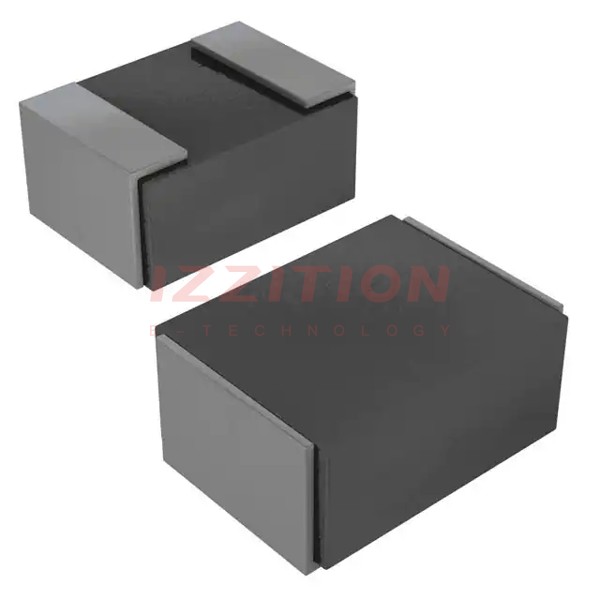

| Part Number | SRP2010-1R5M | SRP2010-1R0M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 1.5 µH | 1 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.9 A | 2.6 A |
| Current - Saturation (Isat) | 2.5A | 2.9A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 137mOhm Max | 69mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Supplier Device Package | - | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.037" (0.95mm) | 0.037" (0.95mm) |
