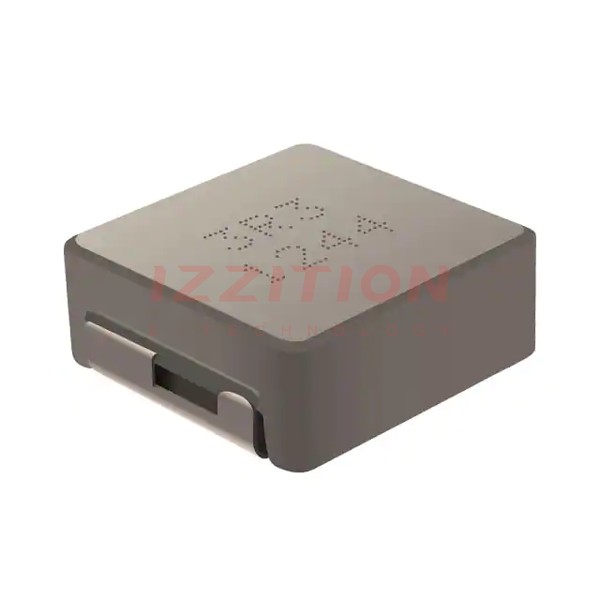

| Part Number | SRP1770TA-390M | SRP1770TA-330M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Carbonyl Powder |
| Inductance | 39 µH | 33 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 9.2 A | 10.7 A |
| Current - Saturation (Isat) | 11A | 15A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 48mOhm Max | 44mOhm Max |
| Q @ Freq | 20 @ 100kHz | 20 @ 100kHz |
| Frequency - Self Resonant | 4MHz | 4MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.665" L x 0.665" W (16.90mm x 16.90mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.276" (7.00mm) |
