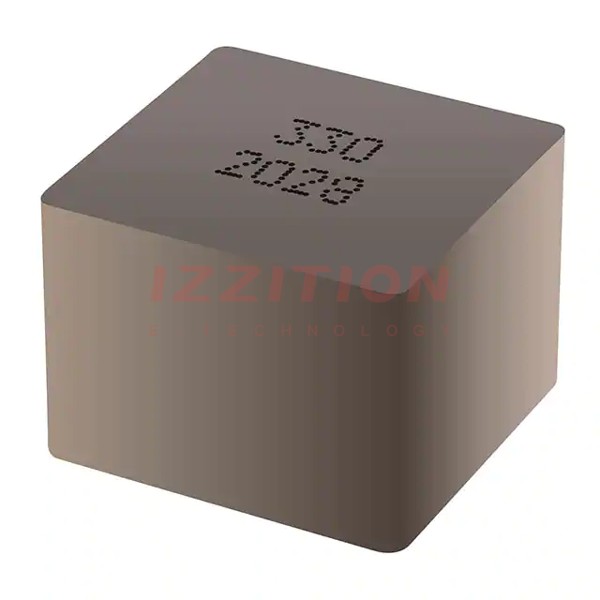

| Part Number | SRP1513CA-6R8M | SRP1510CA-6R8M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal | Metal |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 27 A | 26 A |
| Current - Saturation (Isat) | 37A | 36A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 4.2mOhm Max | 4.6mOhm Max |
| Q @ Freq | 40 @ 100kHz | 30 @ 100kHz |
| Frequency - Self Resonant | 10MHz | 10MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.650" L x 0.610" W (16.50mm x 15.50mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.394" (10.00mm) |
