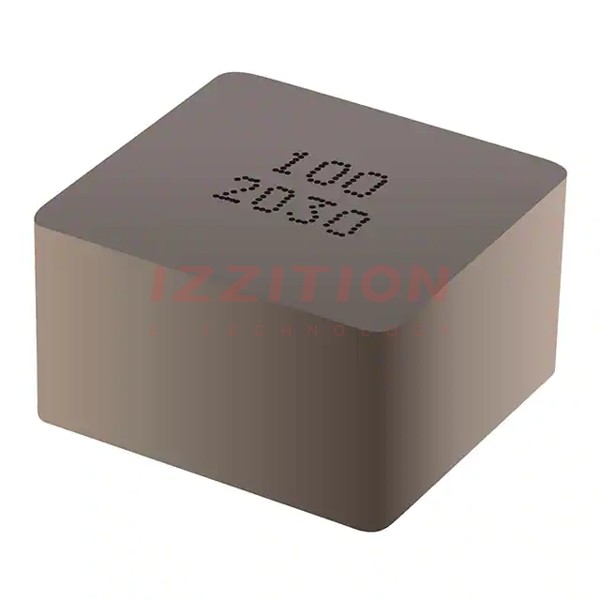

| Part Number | SRP1510CA-220M | SRP1513CA-220M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal | Metal |
| Inductance | 22 µH | 22 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 16 A | 17 A |
| Current - Saturation (Isat) | 20A | 22A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 15.8mOhm Max | 13.86mOhm Max |
| Q @ Freq | 30 @ 100kHz | 40 @ 100kHz |
| Frequency - Self Resonant | 5MHz | 6MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.650" L x 0.610" W (16.50mm x 15.50mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.512" (13.00mm) |
