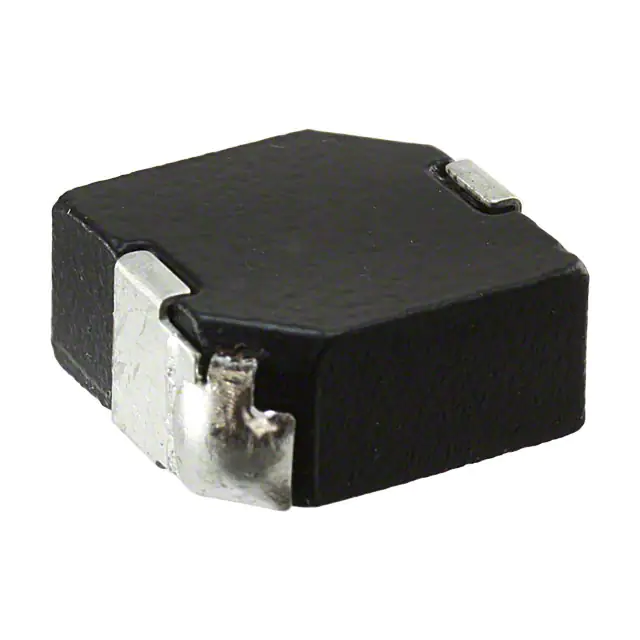

| Part Number | SRP1270-6R8M | SRP1250-6R8M | SRP1270-1R8M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron | Iron |
| Inductance | 6.8 µH | 6.8 µH | 1.8 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 12 A | 11 A | 24 A |
| Current - Saturation (Isat) | 21A | 21A | 41A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 14mOhm Max | 18.5mOhm Max | 3.2mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 12MHz | - | 31MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.539" L x 0.539" W (13.70mm x 13.70mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.232" (5.90mm) | 0.276" (7.00mm) |
