SRP1270-1R8M
  • Share:

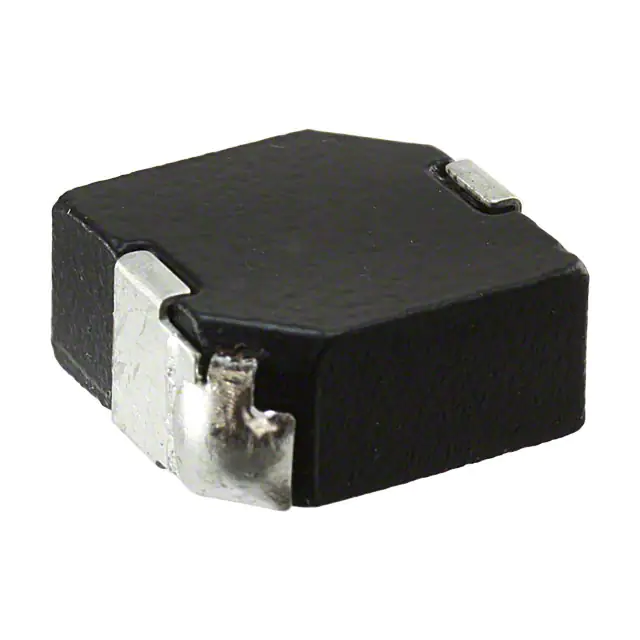

Bourns Inc. SRP1270-1R8M

Manufacturer No:
SRP1270-1R8M
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SRP1270-1R8M Datasheet
ECAD Model:
-
Description:
FIXED IND 1.8UH 24A 3.2 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Iron
Inductance:1.8 µH
Tolerance:±20%
Current Rating (Amps):24 A
Current - Saturation (Isat):41A
Shielding:Shielded
DC Resistance (DCR):3.2mOhm Max
Q @ Freq:-
Frequency - Self Resonant:31MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.539" L x 0.539" W (13.70mm x 13.70mm)
Height - Seated (Max):0.276" (7.00mm)
0 Remaining View Similar

In Stock

$0.95
702

Please send RFQ , we will respond immediately.

Similar Products

Part Number SRP1270-1R8M SRP1270-6R8M   SRP1250-1R8M   SRP1270-1R0M   SRP1270-1R5M
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active Active
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Iron Iron Iron Iron Iron
Inductance 1.8 µH 6.8 µH 1.8 µH 1 µH 1.5 µH
Tolerance ±20% ±20% ±20% ±20% ±20%
Current Rating (Amps) 24 A 12 A 21 A 32 A 27 A
Current - Saturation (Isat) 41A 21A 40A 50A 48A
Shielding Shielded Shielded Shielded Shielded Shielded
DC Resistance (DCR) 3.2mOhm Max 14mOhm Max 4.7mOhm Max 2.1mOhm Max 2.6mOhm Max
Q @ Freq - - - - -
Frequency - Self Resonant 31MHz 12MHz - 45MHz 31MHz
Ratings - - - - -
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 150°C -55°C ~ 125°C -55°C ~ 125°C
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz 100 kHz 100 kHz
Features - - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard Nonstandard Nonstandard
Supplier Device Package - - - - -
Size / Dimension 0.539" L x 0.539" W (13.70mm x 13.70mm) 0.539" L x 0.539" W (13.70mm x 13.70mm) 0.547" L x 0.531" W (13.90mm x 13.50mm) 0.539" L x 0.539" W (13.70mm x 13.70mm) 0.539" L x 0.539" W (13.70mm x 13.70mm)
Height - Seated (Max) 0.276" (7.00mm) 0.276" (7.00mm) 0.232" (5.90mm) 0.276" (7.00mm) 0.276" (7.00mm)
