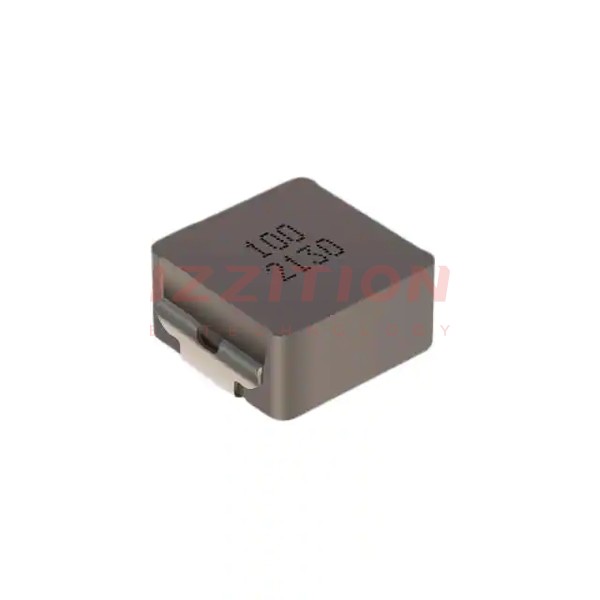

| Part Number | SRP1265WA-330M | SRP1265A-330M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | Drum Core, Wirewound |
| Material - Core | Metal | Carbonyl Powder |
| Inductance | 33 µH | 33 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 6.3 A | 8 A |
| Current - Saturation (Isat) | 7.2A | 11A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 61mOhm Max | 58mOhm Max |
| Q @ Freq | 20 @ 100kHz | 20 @ 100kHz |
| Frequency - Self Resonant | 6MHz | 5MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 165°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Height - Seated (Max) | 0.256" (6.50mm) | 0.252" (6.40mm) |
