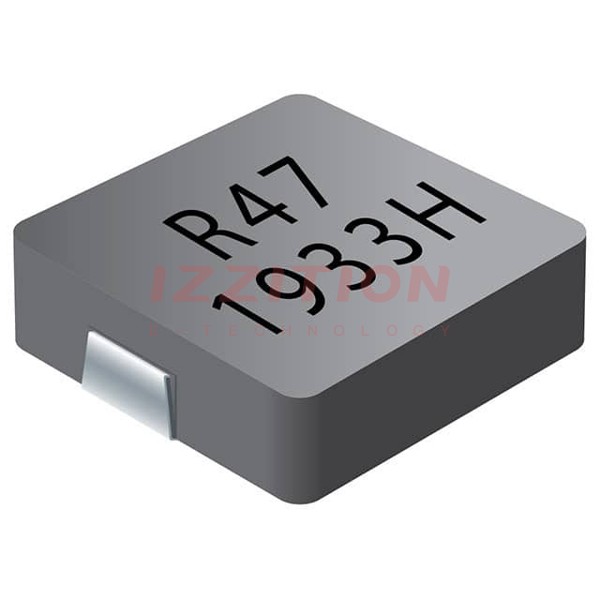

| Part Number | SRP1265C-6R8M | SRP1245C-6R8M | SRP1265A-6R8M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | - | - | Drum Core, Wirewound |
| Material - Core | Metal | Metal | Carbonyl Powder |
| Inductance | 6.8 µH | 6.8 µH | 6.8 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 15 A | 12 A | 11.5 A |
| Current - Saturation (Isat) | 25A | 23A | 18A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 13.2mOhm Max | 16.7mOhm Max | 11.5mOhm Max |
| Q @ Freq | 20 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz |
| Frequency - Self Resonant | 14MHz | 16MHz | 13MHz |
| Ratings | - | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Height - Seated (Max) | 0.256" (6.50mm) | 0.197" (5.00mm) | 0.252" (6.40mm) |
