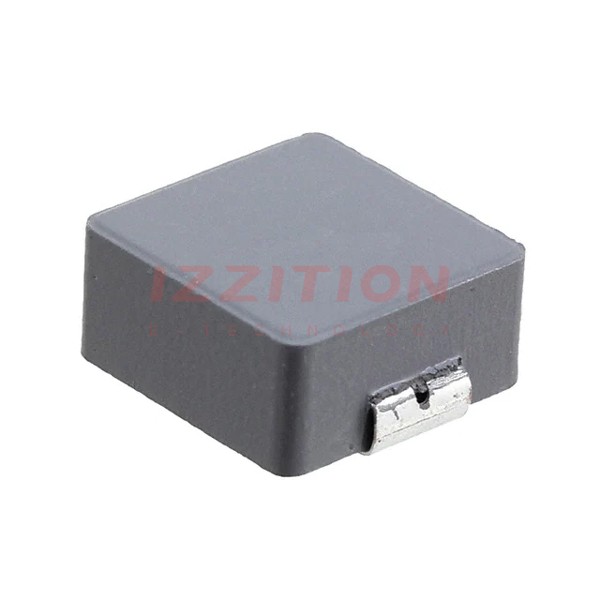

| Part Number | SRP1265A-R22M | SRP1265C-R22M | SRP1265A-R82M | SRP1245A-R22M |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | - | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Metal | Carbonyl Powder | Carbonyl Powder |
| Inductance | 220 nH | 220 nH | 820 nH | 220 nH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 53 A | 55 A | 33 A | 52 A |
| Current - Saturation (Isat) | 112A | 105A | 50A | 110A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 0.6mOhm Max | 600µOhm Max | 1.9mOhm Max | 0.7mOhm Max |
| Q @ Freq | 10 @ 100kHz | 10 @ 100kHz | 15 @ 100kHz | 10 @ 100kHz |
| Frequency - Self Resonant | 130MHz | 98MHz | 50MHz | 120MHz |
| Ratings | AEC-Q200 | - | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 125°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Height - Seated (Max) | 0.252" (6.40mm) | 0.256" (6.50mm) | 0.252" (6.40mm) | 0.197" (5.00mm) |
