Please send RFQ , we will respond immediately.

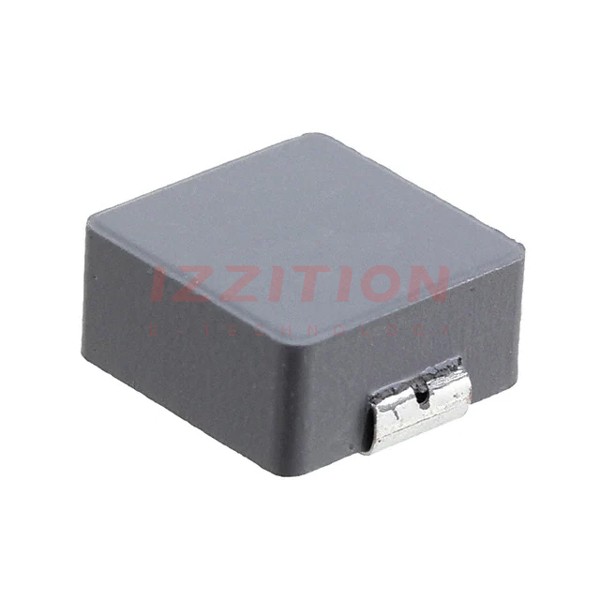

| Part Number | SRP1265A-6R8M | SRP1265C-6R8M | SRP1265WA-6R8M | SRP1245A-6R8M | SRP1265A-1R8M | SRP1265A-6R0M |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | - | - | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Metal | Metal | Carbonyl Powder | Carbonyl Powder | Carbonyl Powder |
| Inductance | 6.8 µH | 6.8 µH | 6.8 µH | 6.8 µH | 1.8 µH | 6 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 11.5 A | 15 A | 14 A | 11 A | 24 A | 12 A |
| Current - Saturation (Isat) | 18A | 25A | 17A | 21A | 40A | 23A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 11.5mOhm Max | 13.2mOhm Max | 11.2mOhm Max | 18.5mOhm Max | 4mOhm Max | 10mOhm Max |
| Q @ Freq | 20 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz |
| Frequency - Self Resonant | 13MHz | 14MHz | 13MHz | 12MHz | 30MHz | 14MHz |
| Ratings | AEC-Q200 | - | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 125°C | -55°C ~ 165°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Height - Seated (Max) | 0.252" (6.40mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.197" (5.00mm) | 0.252" (6.40mm) | 0.252" (6.40mm) |
