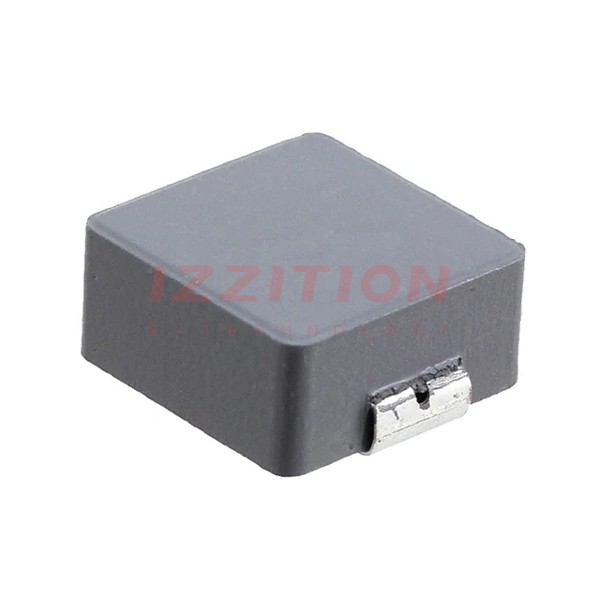

| Part Number | SRP1265A-5R6M | SRP1265WA-5R6M | SRP1245A-5R6M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | - | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Metal | Carbonyl Powder |
| Inductance | 5.6 µH | 5.6 µH | 5.6 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 12.5 A | 15 A | 11.5 A |
| Current - Saturation (Isat) | 23A | 18A | 22A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 10mOhm Max | 10mOhm Max | 16.5mOhm Max |
| Q @ Freq | 20 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz |
| Frequency - Self Resonant | 15MHz | 14MHz | 13MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -55°C ~ 165°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Height - Seated (Max) | 0.252" (6.40mm) | 0.256" (6.50mm) | 0.197" (5.00mm) |
