SRP1265A-3R3M
  • Share:

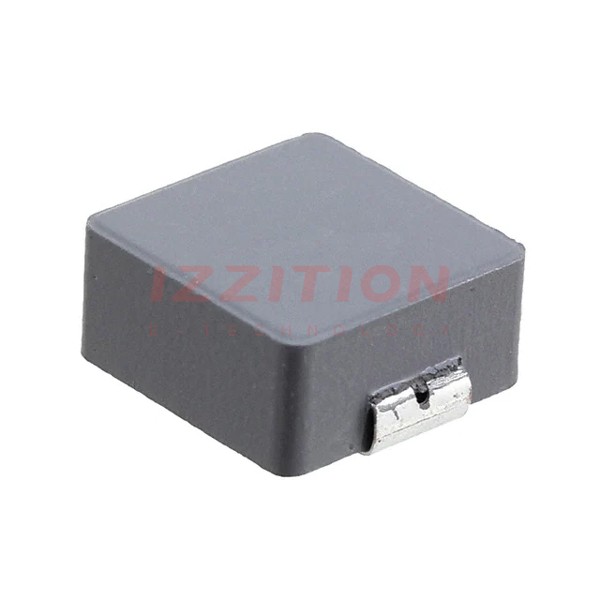

Bourns Inc. SRP1265A-3R3M

Manufacturer No:
SRP1265A-3R3M
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SRP1265A-3R3M Datasheet
ECAD Model:
-
Description:
FIXED IND 3.3UH 18A 6.8 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Carbonyl Powder
Inductance:3.3 µH
Tolerance:±20%
Current Rating (Amps):18 A
Current - Saturation (Isat):30A
Shielding:Shielded
DC Resistance (DCR):6.8mOhm Max
Q @ Freq:20 @ 100kHz
Frequency - Self Resonant:20MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max):0.252" (6.40mm)
0 Remaining View Similar

In Stock

$1.83
90

Please send RFQ , we will respond immediately.

Similar Products

Part Number SRP1265A-3R3M SRP1265C-3R3M   SRP1265WA-3R3M   SRP1245A-3R3M
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active
Type Drum Core, Wirewound - - Drum Core, Wirewound
Material - Core Carbonyl Powder Metal Metal Carbonyl Powder
Inductance 3.3 µH 3.3 µH 3.3 µH 3.3 µH
Tolerance ±20% ±20% ±20% ±20%
Current Rating (Amps) 18 A 22 A 19 A 15 A
Current - Saturation (Isat) 30A 37A 24A 32A
Shielding Shielded Shielded Shielded Shielded
DC Resistance (DCR) 6.8mOhm Max 6.8mOhm Max 6.8mOhm Max 9.2mOhm Max
Q @ Freq 20 @ 100kHz 20 @ 100kHz 20 @ 100kHz 20 @ 100kHz
Frequency - Self Resonant 20MHz 18MHz 19MHz 22MHz
Ratings AEC-Q200 - AEC-Q200 AEC-Q200
Operating Temperature -40°C ~ 150°C -40°C ~ 125°C -55°C ~ 165°C -40°C ~ 150°C
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz 100 kHz
Features - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard Nonstandard
Supplier Device Package - - - -
Size / Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm) 0.531" L x 0.496" W (13.50mm x 12.60mm) 0.535" L x 0.496" W (13.60mm x 12.60mm) 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.252" (6.40mm) 0.256" (6.50mm) 0.256" (6.50mm) 0.197" (5.00mm)
