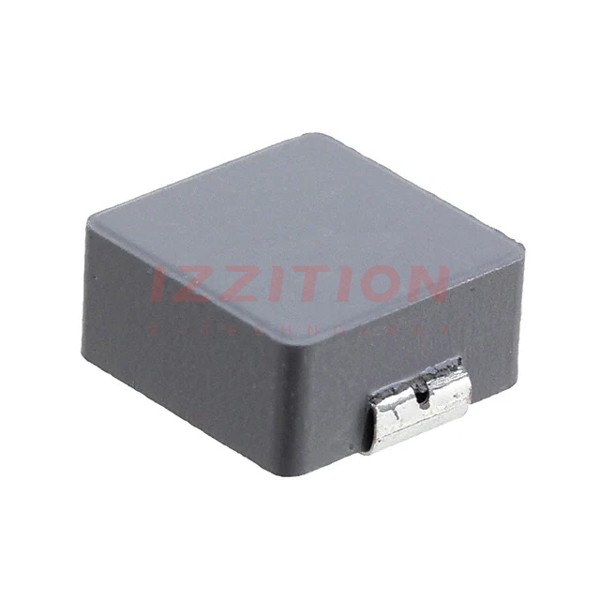

| Part Number | SRP1265A-2R2M | SRP1265A-8R2M | SRP1265WA-2R2M | SRP1265C-2R2M | SRP1245A-2R2M |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | - | - | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Carbonyl Powder | Metal | Metal | Carbonyl Powder |
| Inductance | 2.2 µH | 8.2 µH | 2.2 µH | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 22 A | 10.5 A | 23 A | 25 A | 20 A |
| Current - Saturation (Isat) | 37A | 16A | 26A | 40A | 32A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 4.2mOhm Max | 15.5mOhm Max | 4.2mOhm Max | 4.8mOhm Max | 5.5mOhm Max |
| Q @ Freq | 20 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz |
| Frequency - Self Resonant | 23MHz | 11MHz | 25MHz | 23MHz | 24MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -55°C ~ 165°C | -40°C ~ 125°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Height - Seated (Max) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.197" (5.00mm) |
