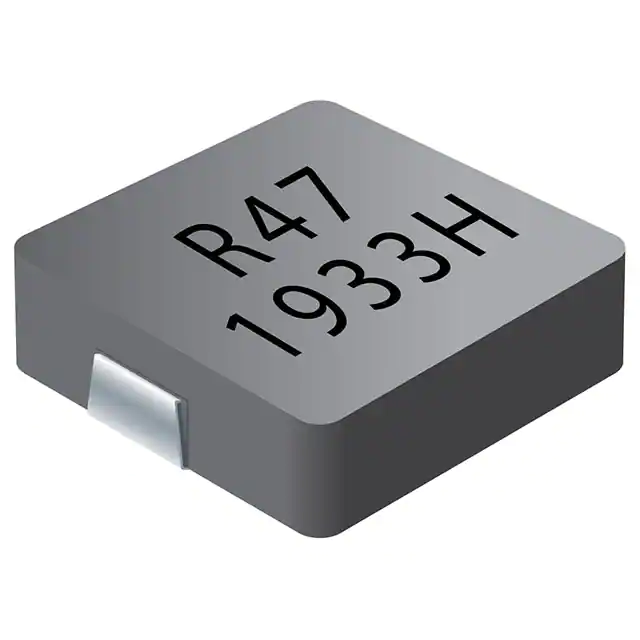

| Part Number | SRP1245C-R36M | SRP1245A-R36M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | - | Drum Core, Wirewound |
| Material - Core | Metal | Carbonyl Powder |
| Inductance | 360 nH | 360 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 41 A | 42 A |
| Current - Saturation (Isat) | 80A | 75A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 0.83mOhm Max | 0.95mOhm Max |
| Q @ Freq | 20 @ 100kHz | 15 @ 100kHz |
| Frequency - Self Resonant | 100MHz | 80MHz |
| Ratings | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) |
