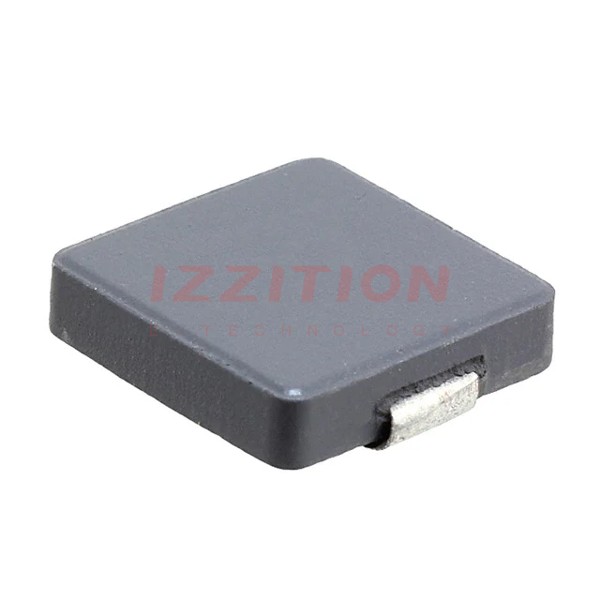

| Part Number | SRP1238A-R10Y | SRP1238A-R15Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Carbonyl Powder |
| Inductance | 100 nH | 150 nH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 43 A | 41 A |
| Current - Saturation (Isat) | 84A | 75A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 0.43mOhm Max | 0.48mOhm Max |
| Q @ Freq | 10 @ 100kHz | 10 @ 100kHz |
| Frequency - Self Resonant | 175MHz | 140MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Height - Seated (Max) | 0.138" (3.50mm) | 0.138" (3.50mm) |
