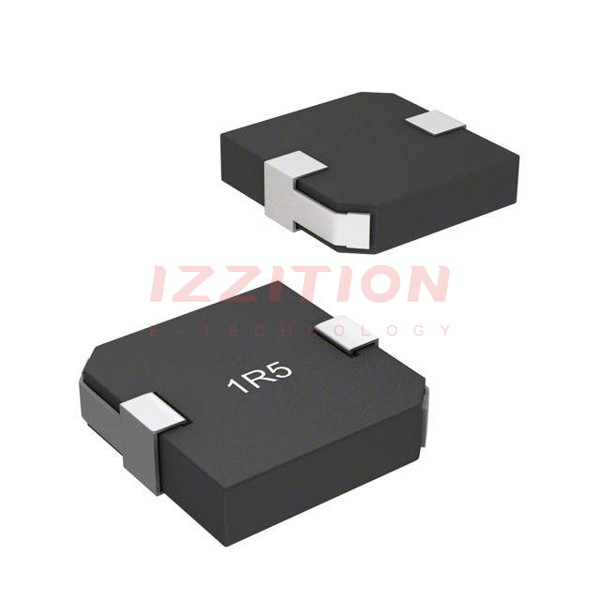

| Part Number | SRP1235-6R8M | SRP1235-1R8M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | - | - |
| Material - Core | Iron | Iron |
| Inductance | 6.8 µH | 1.8 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 9 A | 16.5 A |
| Current - Saturation (Isat) | 13A | 24A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 22mOhm Max | 7mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 14MHz | 32MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.547" L x 0.531" W (13.90mm x 13.50mm) |
| Height - Seated (Max) | 0.146" (3.70mm) | 0.146" (3.70mm) |
