Please send RFQ , we will respond immediately.

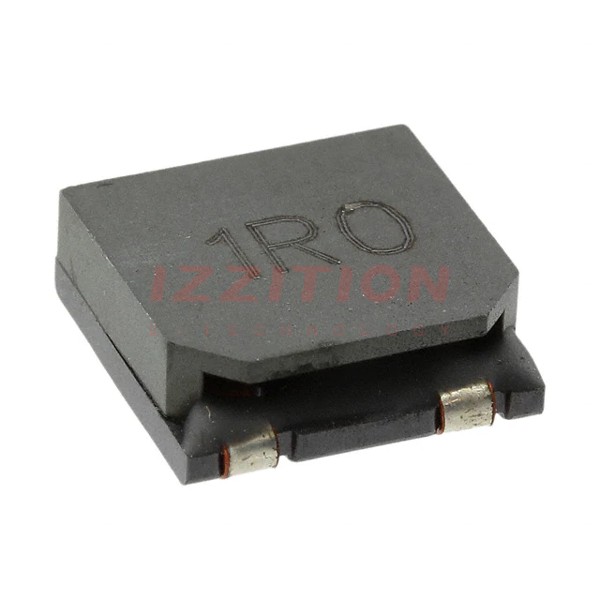

| Part Number | SRP1205-4R0Y | SRP1205-1R0Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 4 µH | 1 µH |
| Tolerance | ±25% | ±25% |
| Current Rating (Amps) | 10.5 A | 14 A |
| Current - Saturation (Isat) | 8.3A | 22A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 5.4mOhm Max | 3.4mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 35MHz | 75MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.220" (5.60mm) | 0.197" (5.00mm) |
