Please send RFQ , we will respond immediately.

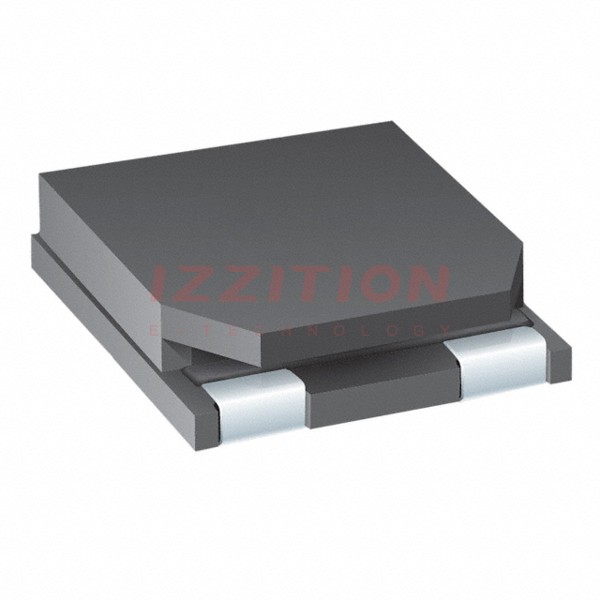

| Part Number | SRP1204-1R1M | SRP1204-1R8M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.1 µH | 1.8 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 12 A | 10 A |
| Current - Saturation (Isat) | 13A | 11A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 4.5mOhm Max | 6mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) |
