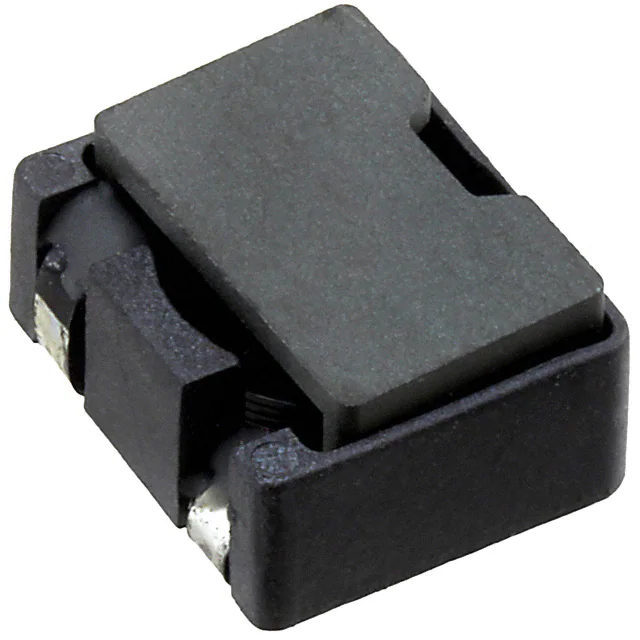

| Part Number | SRP1055-4R3M | SRP1055-4R5M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 4.3 µH | 4.5 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 10 A | - |
| Current - Saturation (Isat) | 8A | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 8.5mOhm Max | - |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.433" L x 0.368" W (11.00mm x 9.35mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.228" (5.80mm) |
