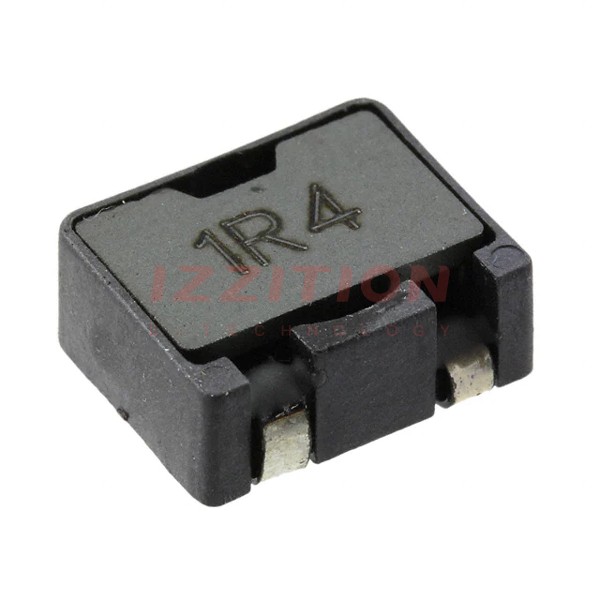

| Part Number | SRP1045-1R4M | SRP1055-1R4M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.4 µH | 1.4 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 13 A | 16 A |
| Current - Saturation (Isat) | 14A | 14A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 4.4mOhm Max | 3.2mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.433" L x 0.368" W (11.00mm x 9.35mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.228" (5.80mm) |
