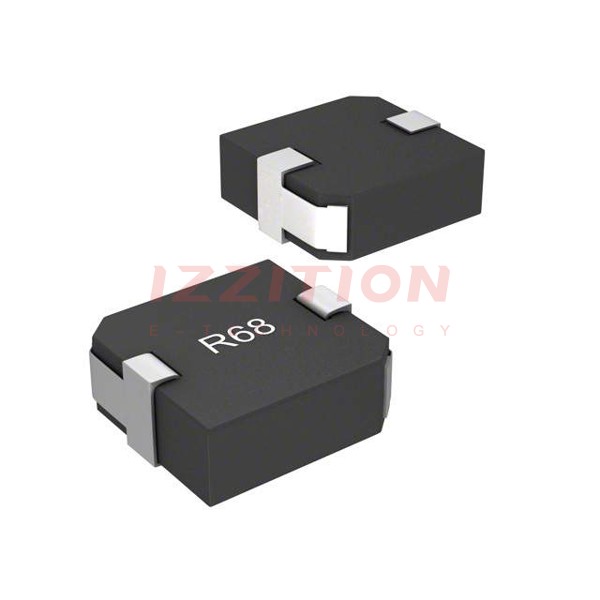

| Part Number | SRP1040-3R3M | SRP1040-3R9M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | - | - |
| Material - Core | Iron | Iron |
| Inductance | 3.3 µH | 3.9 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 10 A | 9 A |
| Current - Saturation (Isat) | 14A | 15A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 10mOhm Max | 12mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.465" L x 0.413" W (11.80mm x 10.50mm) |
| Height - Seated (Max) | 0.165" (4.20mm) | 0.165" (4.20mm) |
