Please send RFQ , we will respond immediately.

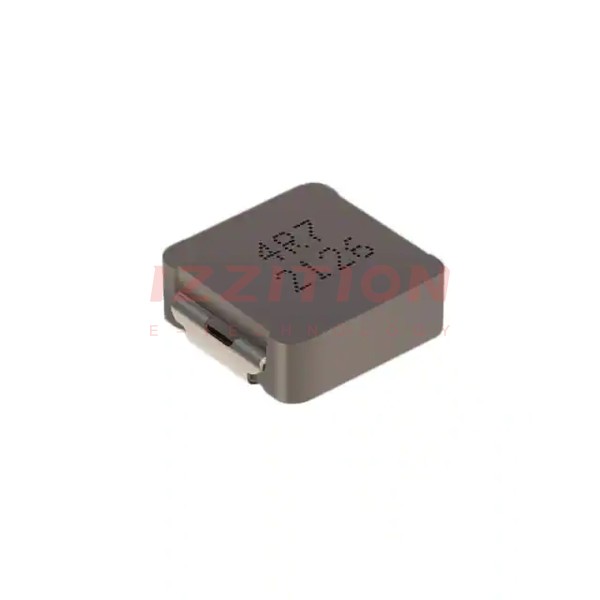

| Part Number | SRP1038WA-R68M | SRP1038WA-R78M | SRP1038AA-R68M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | - | - | Drum Core, Wirewound |
| Material - Core | Metal | Metal | Metal |
| Inductance | 680 nH | 780 nH | 680 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 31 A | 30 A | 23 A |
| Current - Saturation (Isat) | 28A | 27A | 31A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 2.3mOhm Max | 2.5mOhm Max | 2.2mOhm Max |
| Q @ Freq | 15 @ 100kHz | 15 @ 100kHz | 10 @ 100kHz |
| Frequency - Self Resonant | 51MHz | 48MHz | 60MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 165°C | -55°C ~ 165°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
