Please send RFQ , we will respond immediately.

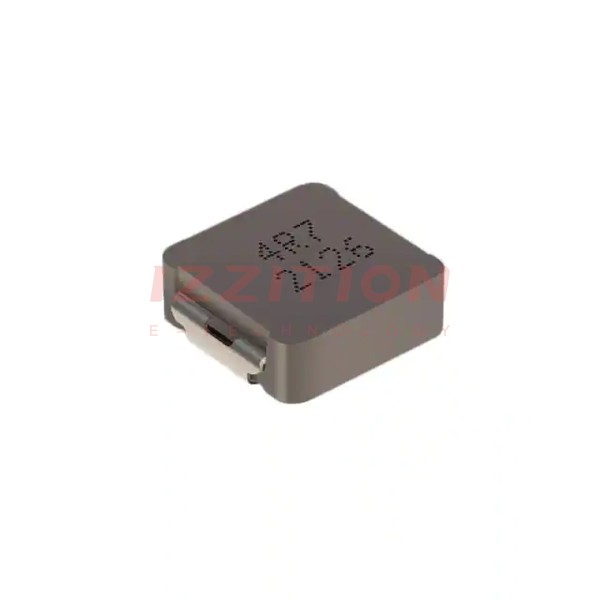

| Part Number | SRP1038WA-4R7M | SRP1038A-4R7M | SRP1038AA-4R7M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | - | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal | Carbonyl Powder | Metal |
| Inductance | 4.7 µH | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 11 A | 10 A | 8.8 A |
| Current - Saturation (Isat) | 13.5A | 17A | 15.2A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 15mOhm Max | 15.5mOhm Max | 19mOhm Max |
| Q @ Freq | 20 @ 100kHz | 20 @ 100kHz | 15 @ 100kHz |
| Frequency - Self Resonant | 16MHz | 16MHz | 16MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 165°C | -40°C ~ 150°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
