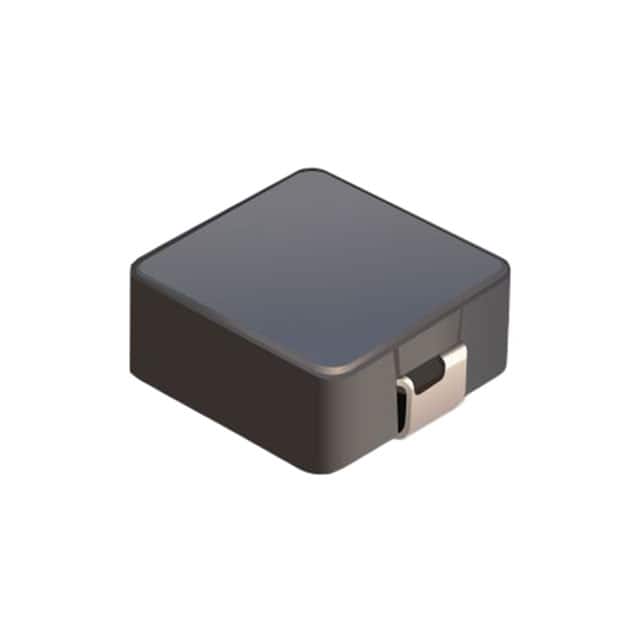

| Part Number | SRP1038AA-330M | SRP1038WA-330M | SRP1038A-330M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | - | Drum Core, Wirewound |
| Material - Core | Metal | Metal | Carbonyl Powder |
| Inductance | 33 µH | 33 µH | 33 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 4.4 A | 4.7 A | 3.5 A |
| Current - Saturation (Isat) | 5.5A | 4.8A | 5A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 91mOhm Max | 102mOhm Max | 112mOhm Max |
| Q @ Freq | 20 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz |
| Frequency - Self Resonant | 6.5MHz | 6MHz | 6MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 165°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
