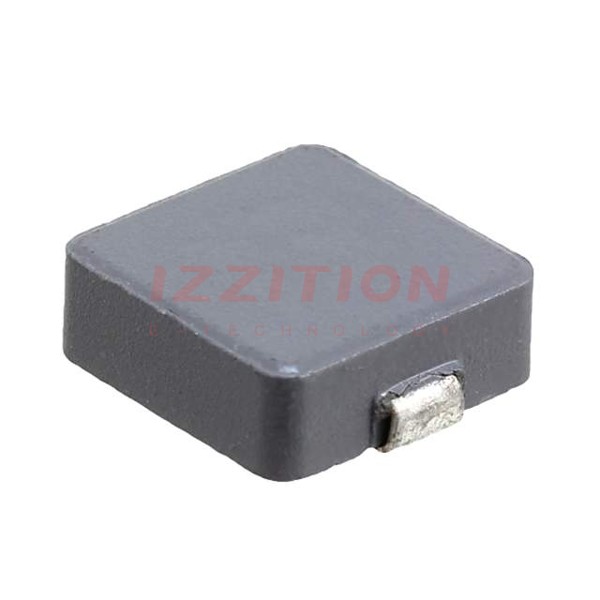

| Part Number | SRP1038A-R75M | SRP1038A-R45M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Carbonyl Powder |
| Inductance | 750 nH | 450 nH |
| Tolerance | - | ±20% |
| Current Rating (Amps) | - | 29 A |
| Current - Saturation (Isat) | - | 45A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | - | 1.5mOhm Max |
| Q @ Freq | - | 15 @ 100kHz |
| Frequency - Self Resonant | - | 75MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) |
