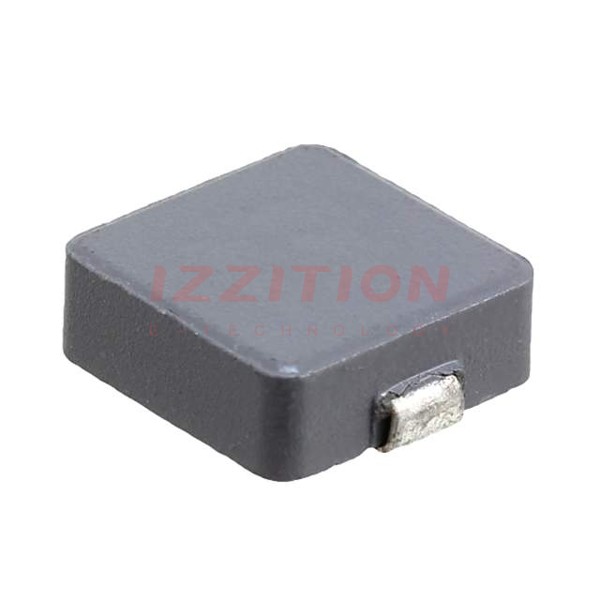

| Part Number | SRP1038A-1R0M | SRP1038A-1R2M | SRP1038WA-1R0M | SRP1038AA-1R0M | SRP1038C-1R0M | SRP1038A-1R5M | SRP1038A-100M | SRP1038A-150M |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | - | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Carbonyl Powder | Carbonyl Powder | Metal | Metal | Metal | Carbonyl Powder | Carbonyl Powder | Carbonyl Powder |
| Inductance | 1 µH | 1.2 µH | 1 µH | 1 µH | 1 µH | 1.5 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 18 A | 17 A | 25 A | 20 A | 20 A | 16 A | 7.5 A | 6.25 A |
| Current - Saturation (Isat) | 36A | 33A | 26A | 29A | 39A | 33A | 12A | 10A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 3.3mOhm Max | 3.8mOhm Max | 3.1mOhm Max | 3.25mOhm Max | 4mOhm Max | 4.6mOhm Max | 30mOhm Max | 45mOhm Max |
| Q @ Freq | 20 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz | 15 @ 100kHz | 15 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz | 20 @ 100kHz |
| Frequency - Self Resonant | 47MHz | 33MHz | 42MHz | 50MHz | 45MHz | 30MHz | 10MHz | 9MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -55°C ~ 165°C | -55°C ~ 155°C | -40°C ~ 125°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
