Please send RFQ , we will respond immediately.

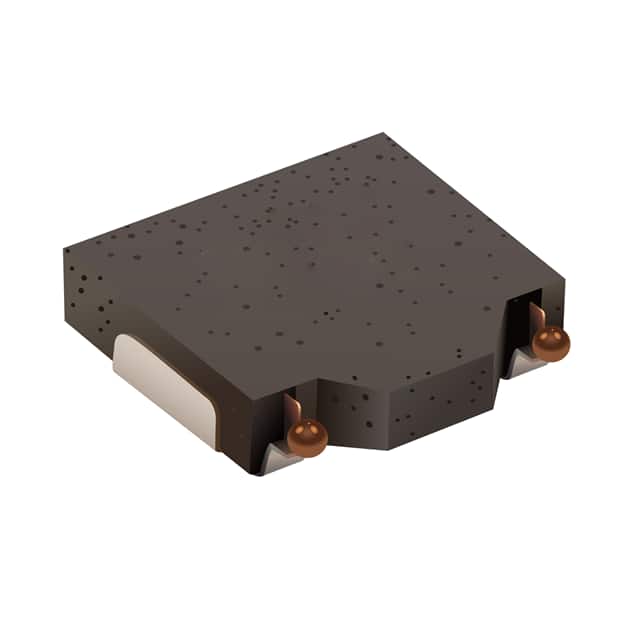

| Part Number | SRP0610-4R7K | SRP0612-4R7K | SRP0620-4R7K | SRP0615-4R7K | SRP0410-4R7K | SRP0510-4R7K |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Last Time Buy | Active | Active | Active | Last Time Buy | Last Time Buy |
| Type | - | - | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal | Metal | Metal |
| Inductance | 4.7 µH | 4.7 µH | 4.7 µH | 4.7 µH | 4.7 µH | 4.7 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 2.8 A | 3.9 A | 5.7 A | 4.3 A | 1.9 A | 2.4 A |
| Current - Saturation (Isat) | 4.6A | 5A | 7.7A | 6A | 2.8A | 3.6A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 133mOhm Max | 82mOhm Max | 39.6mOhm Max | 62mOhm Max | 210mOhm Max | 151mOhm Max |
| Q @ Freq | 31 @ 7.96MHz | 32 @ 7.96MHz | 35 @ 7.96MHz | 33 @ 7.96MHz | 21 @ 7.96MHz | 25 @ 7.96MHz |
| Frequency - Self Resonant | 16MHz | 15MHz | 15MHz | 16MHz | 26MHz | 21MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.047" (1.20mm) | 0.079" (2.00mm) | 0.059" (1.50mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
