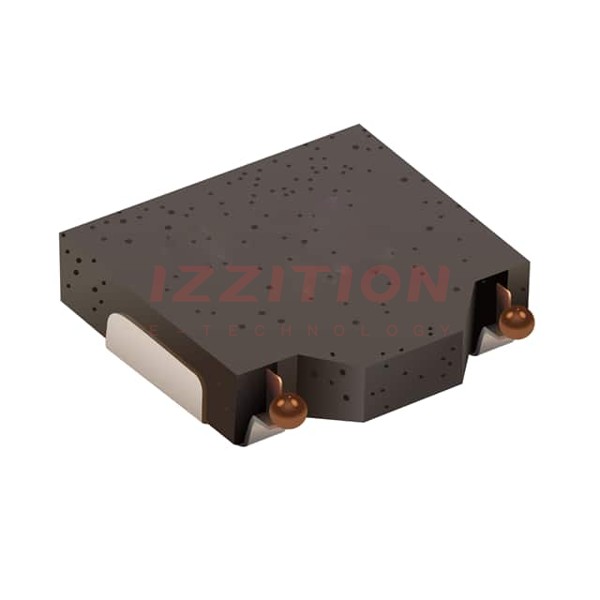

| Part Number | SRP0610-2R2K | SRP0615-2R2K | SRP0612-2R2K | SRP0620-2R2K | SRP0410-2R2K | SRP0510-2R2K |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Last Time Buy | Active | Active | Active | Last Time Buy | Last Time Buy |
| Type | - | - | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal | Metal | Metal |
| Inductance | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 3.3 A | 6 A | 5.5 A | 8.8 A | 3 A | 3.4 A |
| Current - Saturation (Isat) | 5.8A | 9.4A | 7A | 11.5A | 3.9A | 5A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 83mOhm Max | 33.5mOhm Max | 38.8mOhm Max | 17.8mOhm Max | 87mOhm Max | 75mOhm Max |
| Q @ Freq | 42 @ 7.96MHz | 47 @ 7.96MHz | 22 @ 7.96MHz | 46 @ 7.96MHz | 22 @ 7.96MHz | 39 @ 7.96MHz |
| Frequency - Self Resonant | 26MHz | 25MHz | 32MHz | 26MHz | 33MHz | 27MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.059" (1.50mm) | 0.047" (1.20mm) | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
