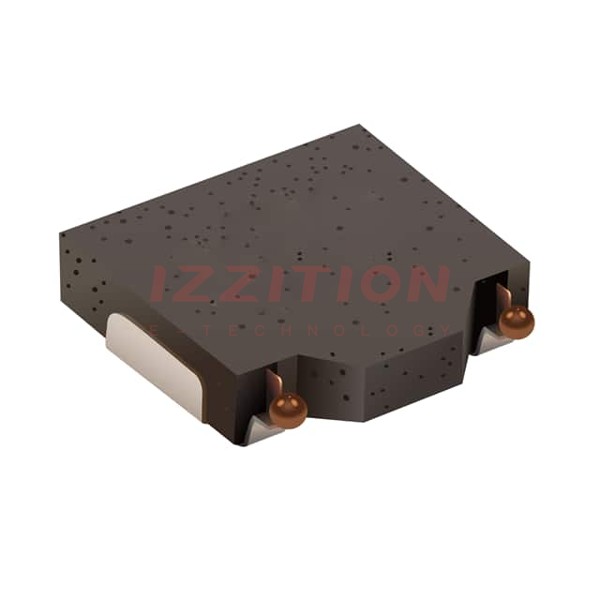

| Part Number | SRP0610-100K | SRP0620-100K | SRP0610-1R0K | SRP0615-100K | SRP0612-100K | SRP0410-100K | SRP0510-100K |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Last Time Buy | Active | Last Time Buy | Active | Active | Last Time Buy | Last Time Buy |
| Type | - | - | - | - | - | - | - |
| Material - Core | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Inductance | 10 µH | 10 µH | 1 µH | 10 µH | 10 µH | 10 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 2 A | 3.6 A | 4.4 A | 3 A | 2.7 A | 1.4 A | 1.6 A |
| Current - Saturation (Isat) | 2.5A | 5A | 8A | 3.8A | 3A | 1.7A | 2.1A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 240mOhm Max | 96mOhm Max | 54mOhm Max | 120mOhm Max | 157mOhm Max | 350mOhm Max | 335mOhm Max |
| Q @ Freq | 11 @ 2.52MHz | 38 @ 2.52MHz | 49 @ 7.96MHz | 42 @ 2.52MHz | 26 @ 2.52MHz | 20 @ 2.52MHz | 24 @ 2.52MHz |
| Frequency - Self Resonant | 11MHz | 10MHz | 43MHz | 11MHz | 10MHz | 16MHz | 15MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.280" L x 0.264" W (7.10mm x 6.70mm) | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.213" L x 0.201" W (5.40mm x 5.10mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.059" (1.50mm) | 0.047" (1.20mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
